Different types of ICOMs and Cables

Different types of ICOMs and Cables

ICOMs

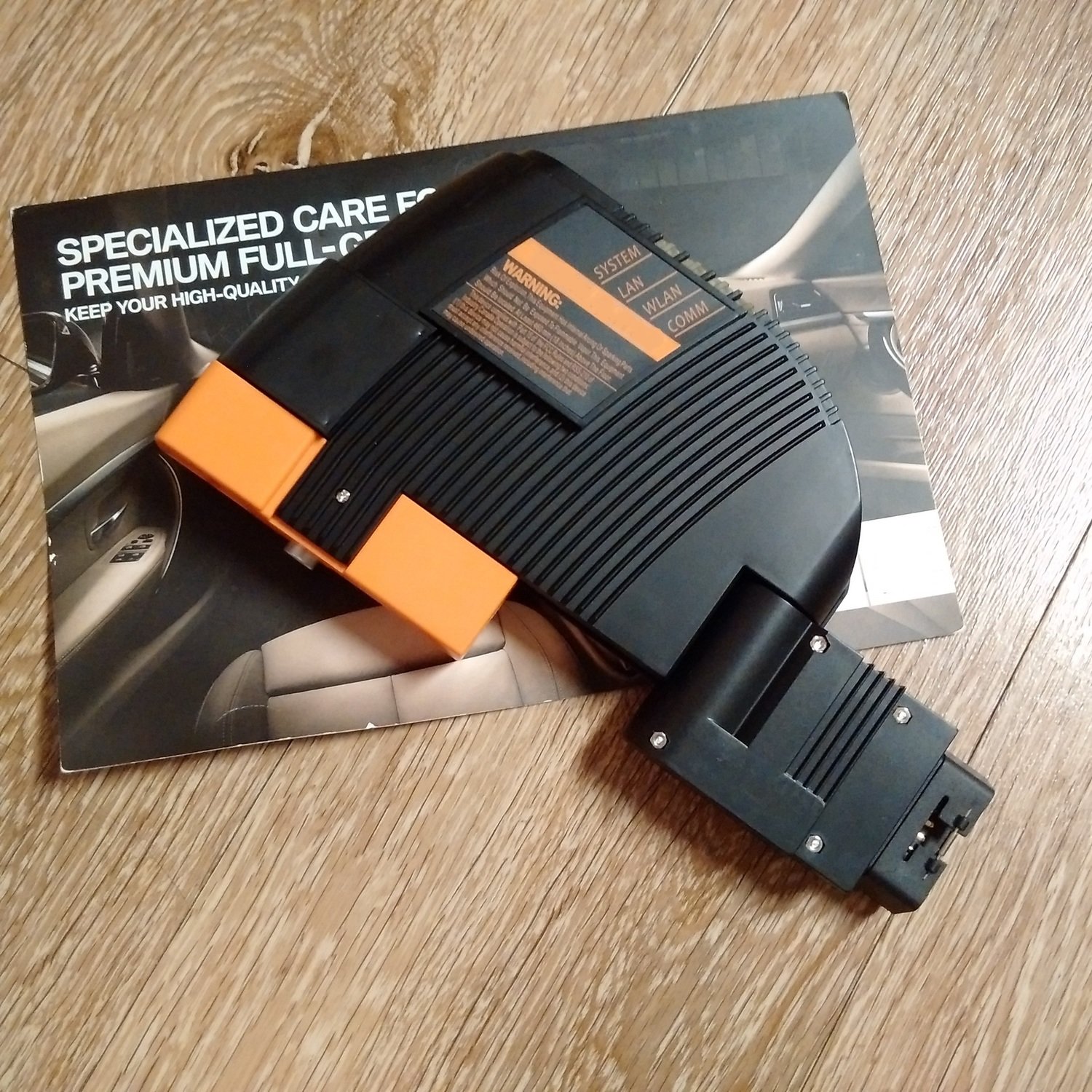

ICOM A
A multi-functional vehicle interface. It was developed for use in workshop and service applications and supports service consultation, diagnosis and vehicle programming/encoding processes. It can be used to process all vehicles of the BMW Group.

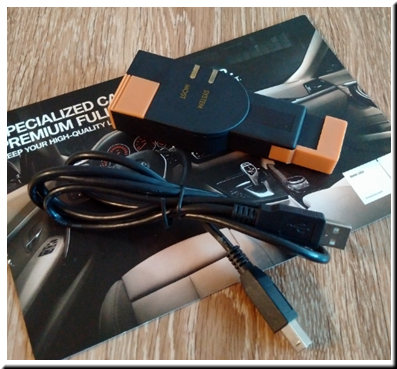

ICOM B
Needed for MOST modules (BMW E series from 2001 till 2012).

The ICOM B is the external MOST (Media Oriented Systems Transport) interface of the ICOM A. It is connected to the ICOM A using the supplied cable or a commercially available USB cable of the type A-B. The power supply is fed across the ICOM A via USB.


Electrical operation:

Power supply via USB 2.0 interface: 5 V
Maximum current consumption: 250 mA
Environmental conditions during operation:
Ambient temperature range: 0°C ... +45°C
Relative atmospheric humidity at max. 25°C: 10% ... 80%, non-condensing
Temperature gradient: 5°C/h
Environmental conditions for mount:
Ambient temperature range: -20°C ... +60°C
Relative atmospheric humidity at max. 25°C: 10% ... 80%, non-condensing

Temperature gradient: 5°

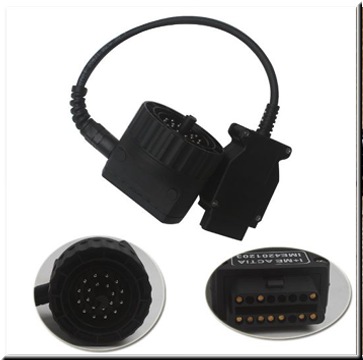

ICOM C
Needed for BMW older than June 2001.

The ICOM C is an intelligent interface adapter that adapts the physical OBD II to the BMW circular socket. As an extended supplementary module, it connects ICOM A to vehicles without an OBD II interface.




​

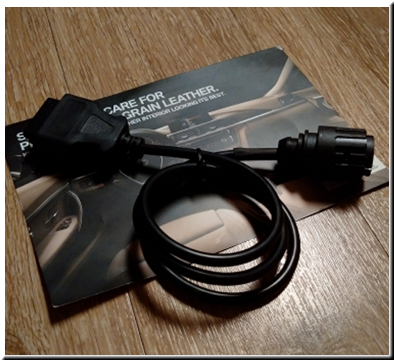

ICOM D
Needed for BMW Bikes (Motorrad).





CABLES:

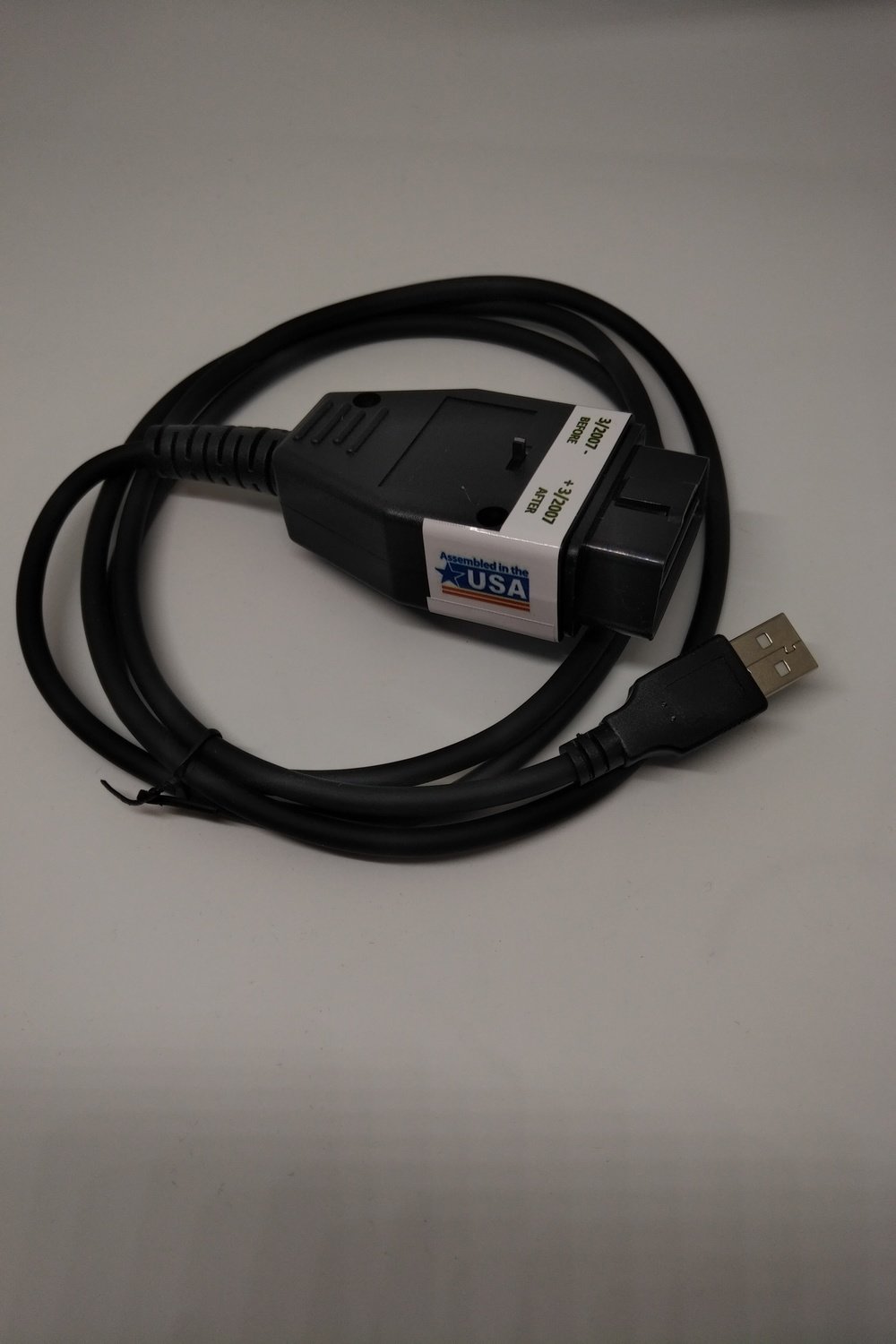

K+DCAN cable for BMW E Series

For BMW E Series from 1998 till 2011

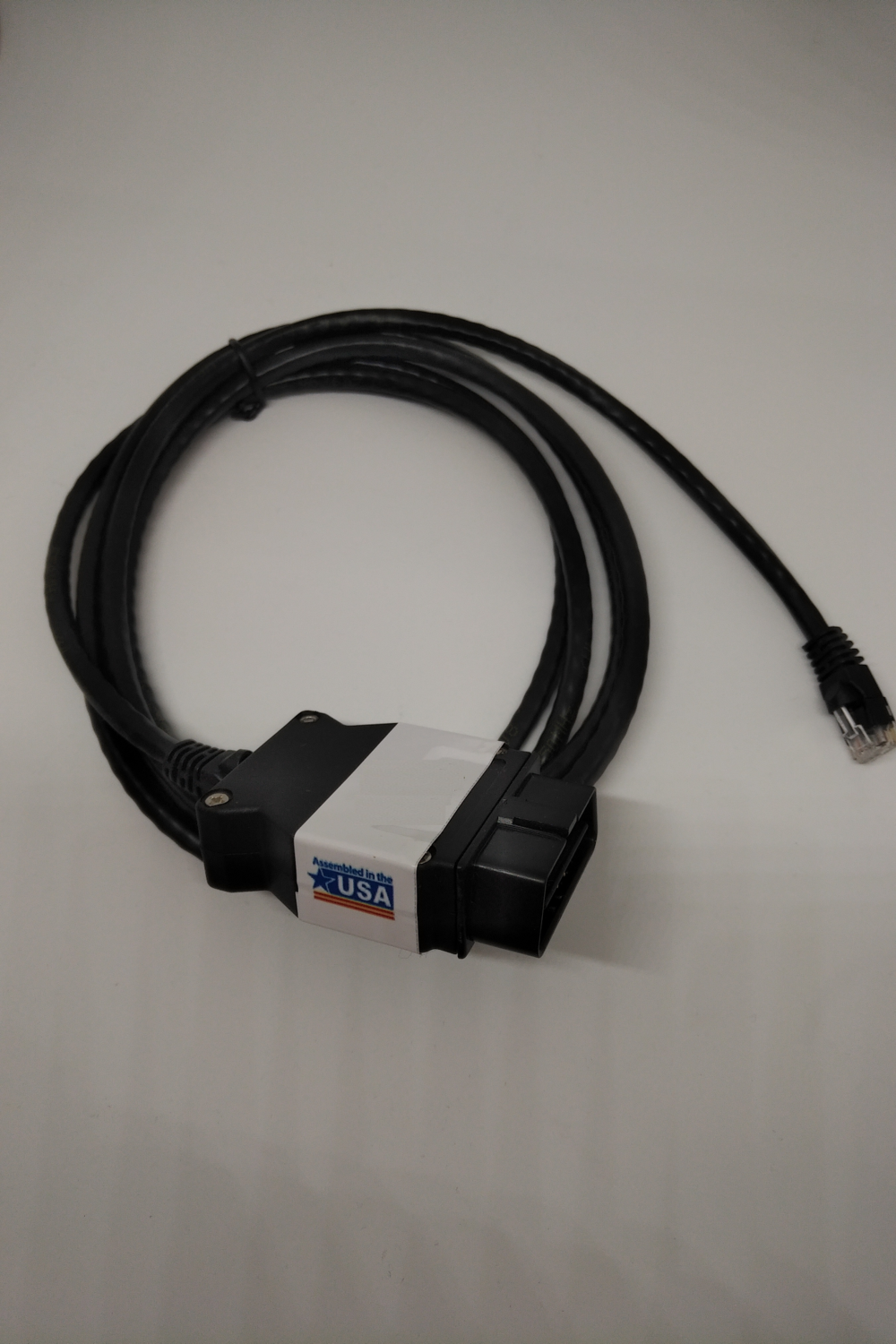

ENET cable for BMW F series

BMW ENET Interface Cable (OBD2 to Ethernet) is used for coding, programming & diagnostics.

This can be used with Rheingold ISTA/D, E-SYS, INPA, and ISIS.



Specifications:

Gold-plated RJ-45 connector; CAT6 Cable; Black OBD Interface connector; 7ft length.



Compatible BMW Models:

BMW 1-series: F20, F21, F44, F45, F46

BMW 2-series: F22, F23

BMW 3-series: F30, F31, F34, F80

BMW 4-series: F32, F33, F35, F36, F82, F83

BMW 5-series: F07, F10, F11, F18

BMW 6-series: F06, F12, F13

BMW 7-series: F01, F02, F03, F04

BMW i-series: i3 (I1), i8 (I12)

BMW X-series: F15, F16, F25, F26, F48

BMW ///M-series: F80, F82, F83, F10, F06, F12, F13

ALPINA Models: D3, B3, B4, XD3, D5, B5, B6, B7.
