10007 (CIP) - Fault during initialization of EDIABAS with K+DCAN cable on ISTAP

10007 (CIP) - Fault during initialization of EDIABAS with K+DCAN cable on ISTAP

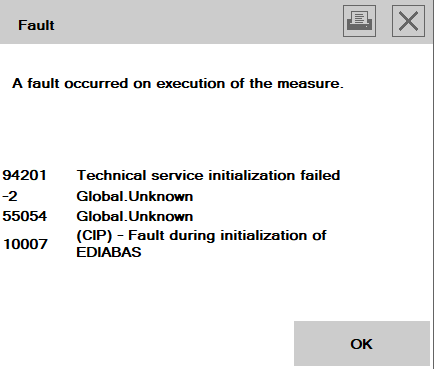

Problem:  K+DCAN cable works with ISTAD but got an error with ISTAP (10007 (CIP) - Fault during initialization of EDIABAS)

A fault occurred on execution of the measure.







Solution:  Shutdown ISTAP. Open up your Network Connections window and look for Microsoft KM-TEST Loopback Connection.

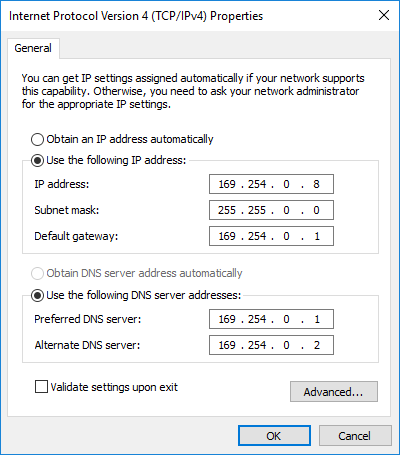

Set up the IPv4 as follows:







Disable and Enable the Microsoft KM-TEST Loopback Connection. Launch ISTAP  > K+DCAN Emulator and start a new session.
